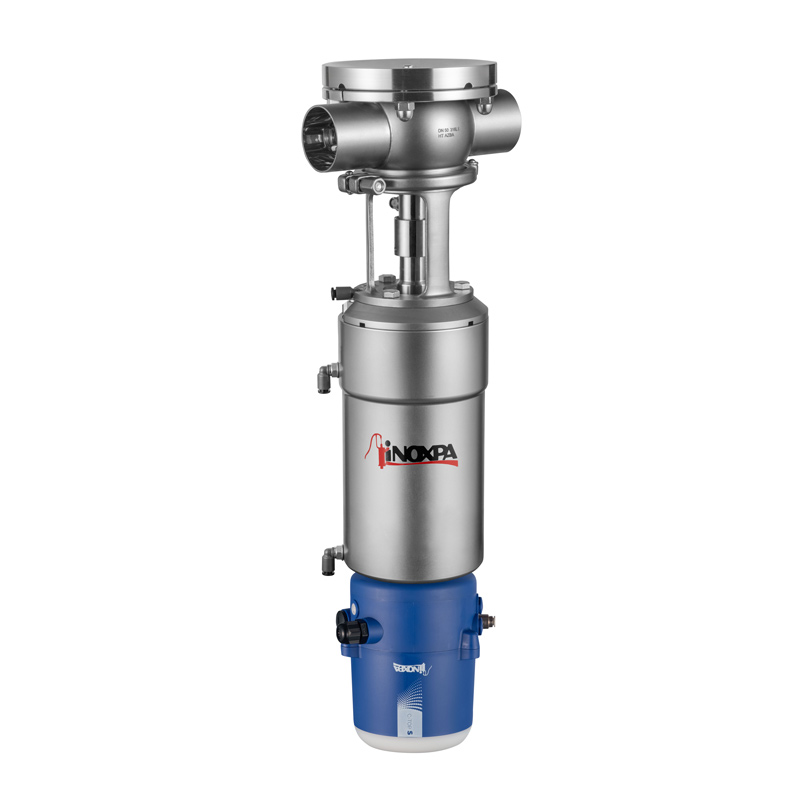

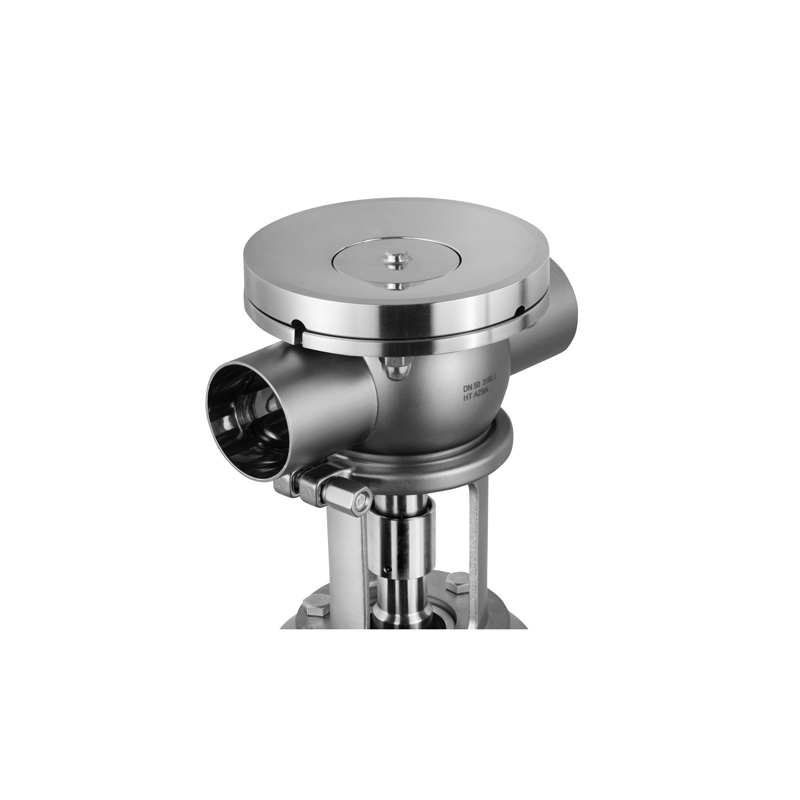

The INNOVA T mixproof valve is a double seat pneumatic shut-off valve designed specifically for use in tanks and vats used for hygienic applications. A leak detection chamber under atmospheric pressure formed between both seats ensures that two different products are safely separated, one of which is usually CIP (cleaning agent).
INNOVA T Tank Bottom Double Seat Valve
Information
INNOVA T Tank Bottom Double Seat Valve
Funktionsprinzip
The INNOVA T valve has two seats that form a leak detection chamber at atmosphere pressure for every type of operating condition. This means that any leaked product will enter the leak detection chamber before being discharged through the leak outlet. The leak detection chamber is closed when the valve is open, enabling the product to transfer from the tank to the pipes. This chamber is closed to the process when the valve is open, enabling the product to transfer from the tank to the pipes. Additionally, the valve can be cleaned to any level depending on the process.
Aufbau und Kenndaten
No leakage during the opening/closing of the valve.
Single-acting pneumatic actuator.
Easy disassembly of internal parts by loosening a clamp fastener.
Open lantern allows visual inspection of shaft sealing.
Materialien
Parts in contact with the product 1.4404 (AISI 316L)
Other stainless steel parts 1.4301 (AISI 304)
Gasket in contact with the product EPDM
Surface finish
Internal Polished Ra ≤ 0,8 μm
External Matt
Available sizes
DIN EN 10357 series A DN 40 - DN 100
ASTM A269/270 OD 1½’’ - OD 4’’
Optionen
Gaskets: FPM, HNBR.
Other connection types.
Control unit.
External position sensors.
Internal surface finish: Ra < 0,5 μm.
Bodies with heating jacket.
Dokument
Technisches datenblatt v.22 (4)
Technisches datenblatt (7)
Quick installation guide v.22 (1)
Quick installation guide (1)
Bedienungsanleitung v.22 (4)
Bedienungsanleitung (4)
3D CAD v.22 (4)
Funktionsprinzip
The INNOVA T valve has two seats that form a leak detection chamber at atmosphere pressure for every type of operating condition. This means that any leaked product will enter the leak detection chamber before being discharged through the leak outlet. The leak detection chamber is closed when the valve is open, enabling the product to transfer from the tank to the pipes. This chamber is closed to the process when the valve is open, enabling the product to transfer from the tank to the pipes. Additionally, the valve can be cleaned to any level depending on the process.
Materialien and Optionen
Parts in contact with the product 1.4404 (AISI 316L)
Other stainless steel parts 1.4301 (AISI 304)
Gasket in contact with the product EPDM
Surface finish
Internal Polished Ra ≤ 0,8 μm
External Matt
Available sizes
DIN EN 10357 series A DN 40 - DN 100
ASTM A269/270 OD 1½’’ - OD 4’’
Gaskets: FPM, HNBR.
Other connection types.
Control unit.
External position sensors.
Internal surface finish: Ra < 0,5 μm.
Bodies with heating jacket.
